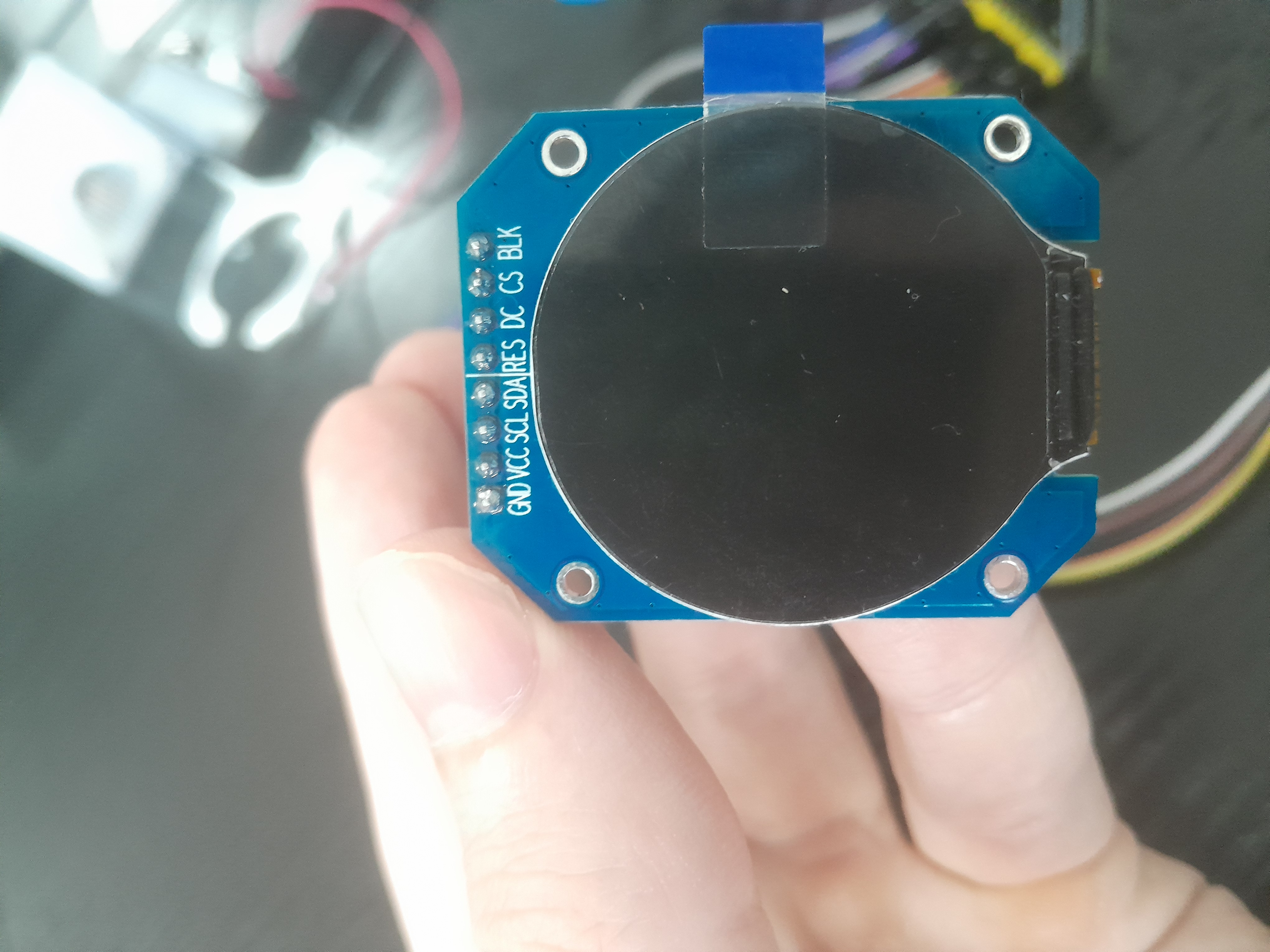

TFT Display 1.28" IPS LCD Round RGB 240*240 GC9A01 Driver 4 Wire SPI Interface 240x240 PCB
Cheap touch display used for Arduino or ESP32 or other microcontroller. PCB not measured here, only screen, pins, and mounting holes.
Product Page
Open CAD Resources
Component Interface Drawings

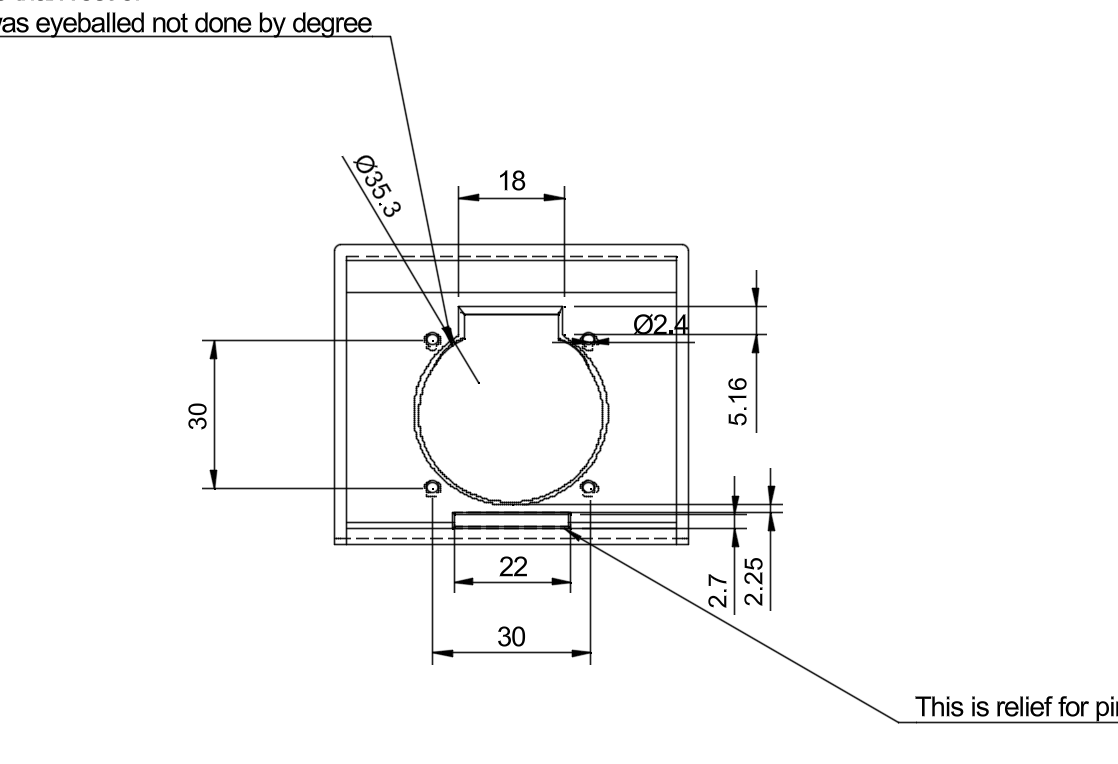

Simple interface drawings for electronic and mechanical components that I purchased but could not find usable CAD readily available for them.
DWG Component Drawings
Usage Notes
- All dimensions are in millimetres unless stated otherwise.
- These are unofficial reference drawings from my own experiments, not manufacturer-controlled documents.
- Verify critical dimensions against your own component before manufacturing.
- DWG and DXF files are provided for editing; PDFs are provided for quick review.
